DEVELOP A CUSTOMIZED IDENTIFICATION & MANAGEMENT SYSTEM
Aquaculture facilities and breeding programs around the world have adopted Biomark® equipment as an integral part of broodstock management plans, feed and vaccine trials, and genetic research programs.
Develop a customized identification and management system with PIT tags, innovative antenna systems, data collection modules and more.

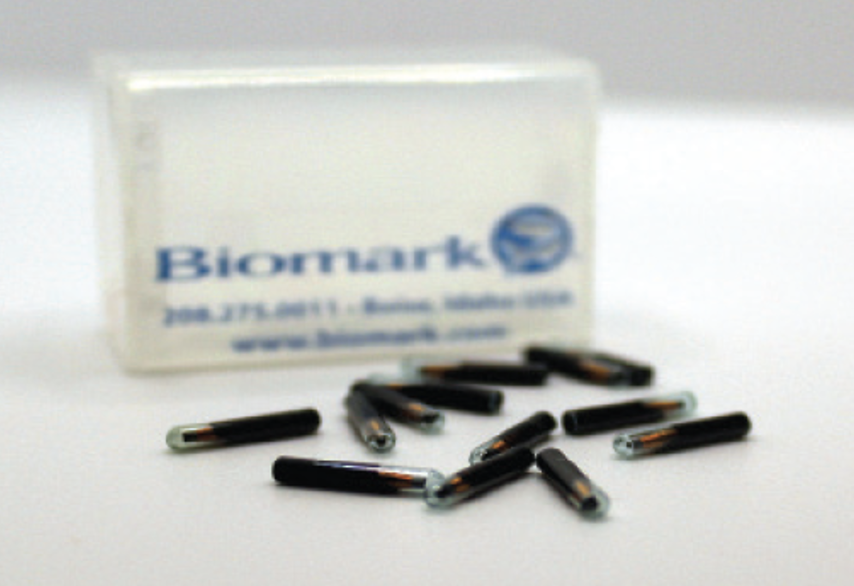

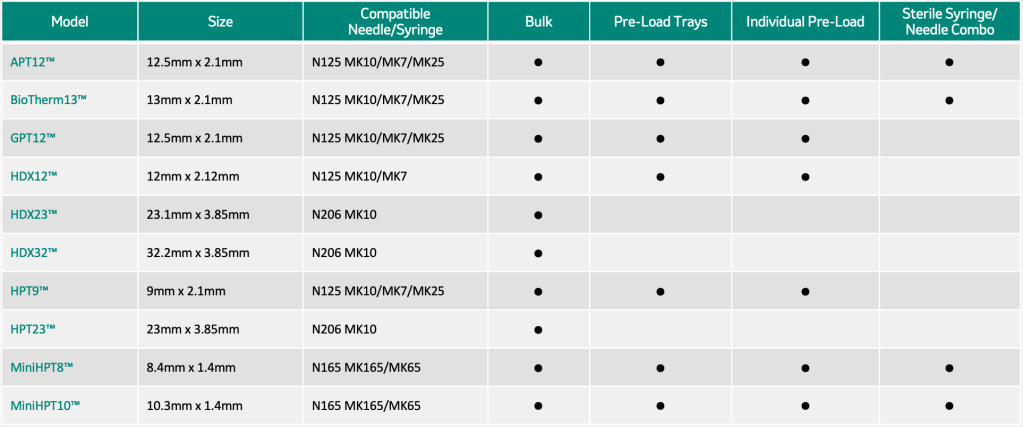

PIT Tags
We supply PIT tags in a variety of sizes and styles to many aquaculture facilities around the world. For the most part, these facilities use the GPT12 and APT12 PIT tags that are pre-loaded in trays of 100. We also offer individual tags for use with syringe style implanters and reusable needles, which are used to tag smaller volumes of fish.
Biomark® PIT tags are encapsulated in biocompatible glass, low frequency 134.2 kHz, and provide 100% unique identification. These PIT tags are available in different sizes, performance levels, and packaging options to meet your specific application needs and budget. All PIT tags are ISO (International Organization for Standardization) 11784/11785 compliant and ICAR (International Committee of Animal Recording) approved.
The highest performing 134.2 kHz RFID tags on the market. Tags are sold in quantities of 100.
PIT Tag Readers
We specialize in PIT tag readers designed and engineered by Biomark to meet the rigorous in-field requirements and complex remote monitoring applications. Reader assembly and thorough QA/QC are led by our team of expert electronic technicians.

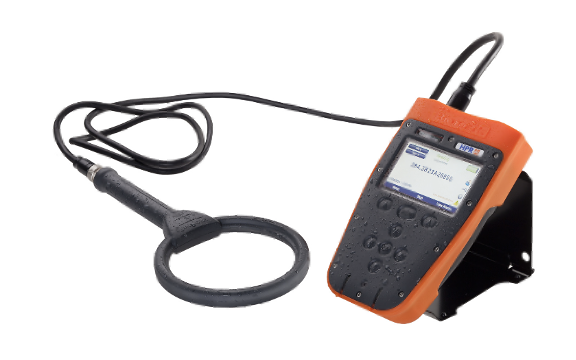

HPR PLUS™ Handheld Reader
Tags Read: 134.2 FDX-B and HDX
Memory Storage: 1.6 million tag codes
Data Retrieval: USB port or Bluetooth
Auto Tuning: Yes
Waterproof: IP67 waterproof
GPS: Yes
Display: 24-bit color, Backlit 5.5cm x 9.5cm
Power: Rechargeable battery
External Antennas: Yes Volume Pricing: Yes

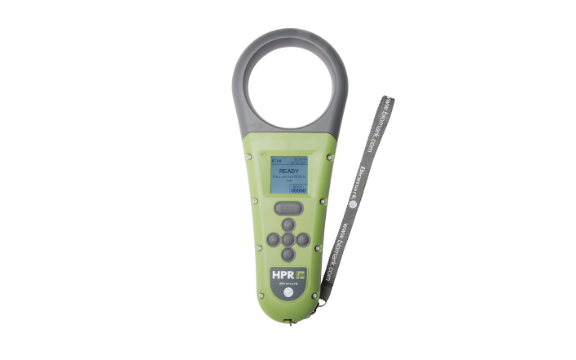

HPR Lite™ Handheld Reader
Tags Read: All Biomark PIT tags
Memory Storage: 50,000 tag codes
Data Retrieval: Micro USB-PC, Bluetooth
Waterproof: IP67 waterproof
Display: LCD, Backlit 38mm x 38mm
Power: Rechargeable battery
Volume Pricing: Yes

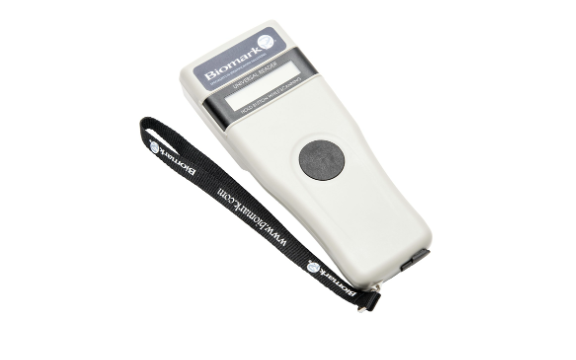

GPR™ Handheld Reader
Tags Read: All Biomark PIT tags
Memory Storage: 3,000 tag codes
Data Retrieval: Bluetooth
Waterproof: No
Display: Backlit, High Contrast 56mm x
12.7mm
Power: Six (6) AAA NiMH rechargeable
batteries, or alkaline batteries
Tissue Sampling Units (TSU)
Scientific advancements in the mapping of genomes, along with continued development of affordable genotyping and sequencing, has changed the sampling industry. Collecting tissue samples has never been more efficient and cost effective as it is with the Biomark Tissue Sampling Unit (TSU).
Each TSU includes a collection tube (vial), metal cutter, and red plastic safety clip and is designed for a single, one-time use. The proprietary liquid buffer is usable in DNA laboratory settings without restraints on existing DNA extraction protocols and provides a stable medium for multiple extractions.

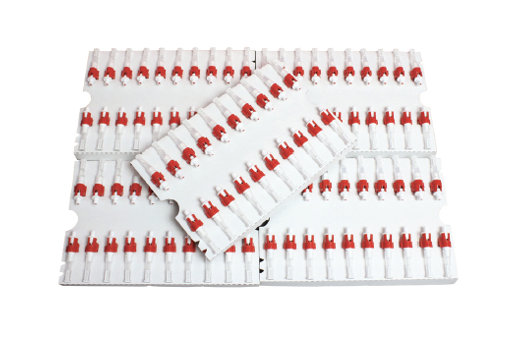

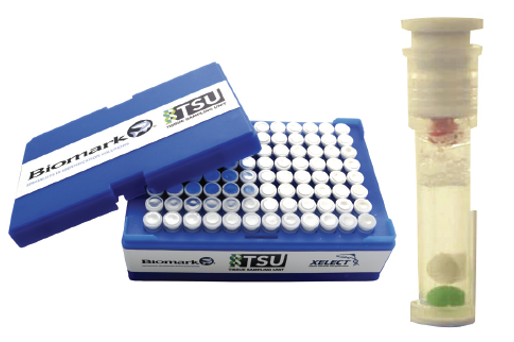

TSU Tracy
The stackable tray has a lid and contains 96 vials
TSU Tray Box of 100
Bulk option includes 100 unit in cardboard trays

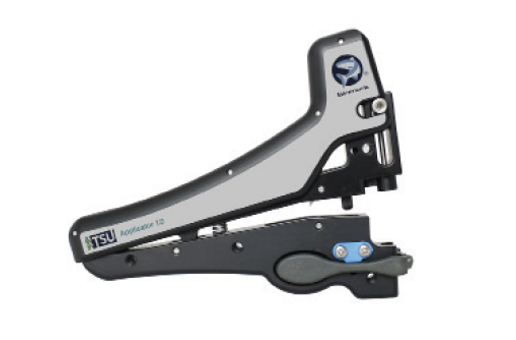

Fish-Friendly Applicator
The TSU Applicator is used in conjunction with the TSI vial to collect the sample by cutting the tissue and sealing it into the vial

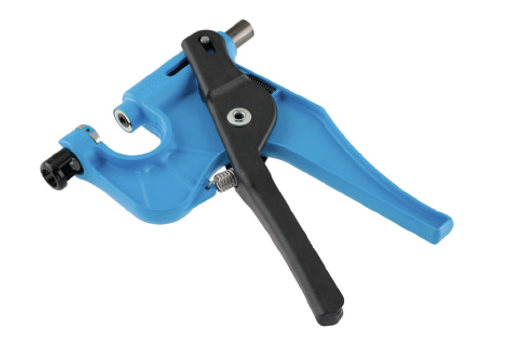

TSU AFX Large Applicator
The TSU AFX Large Applicator is both large and very robust, designed for heavy duty work on large adult fish or mammals

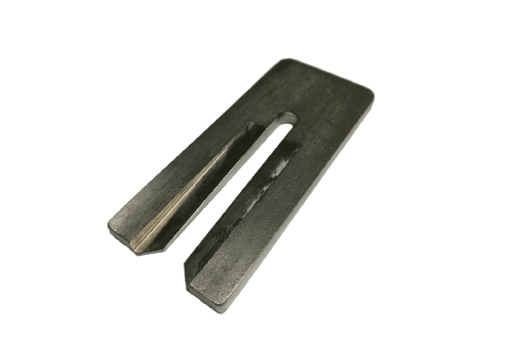

TSU Vial Opener
The TSU Aluminum Vial Opener is an economical option for removing the vial seal cap before extracting the sample

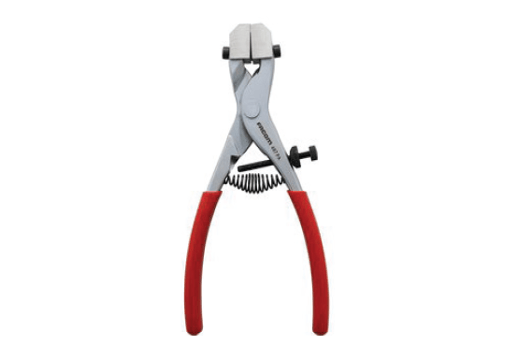

Aluminum Pliers
Pliers are recommended when removing the Tissue Sampling Unit (TSU) vial seal cap from a larger quantity of vials

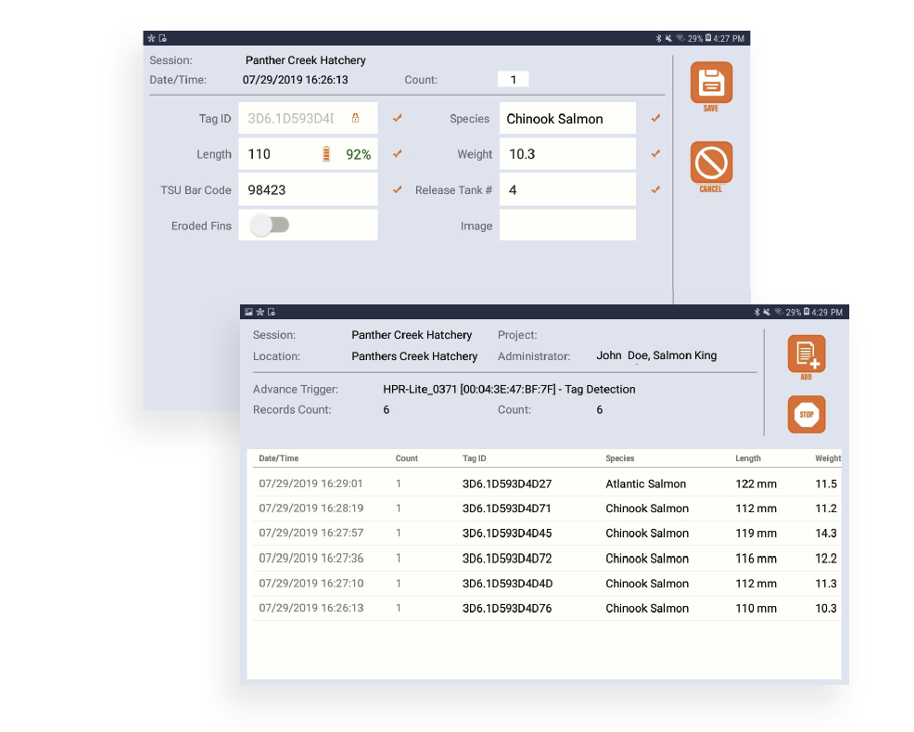

Data Collection Module (DCM)
The BioLogic Data Collection Module (DCM) is an Android software application designed for streamlining data collection and data management. The software is easily customized for collecting many types of data points including RFID codes (PIT tags). The DCM custom data fields and templates may be pre-populated from a user defined list or default value and assigned constraints and validations minimizing errors when collecting data.
FEATURES
- Customizable data fields with validity checks and alerts
- Built-in GPS
- Support for built-in camera
- Exporting data to external files (CSV, text, Excel)
- Integration with Bluetooth devices: Biomark RFID readers, Electronic Measuring Board, and Bar Code Scanner for the Tissue Sampling Unit (TSU) or any other product requiring the recording of a 2D bar code
- Scale Label printing
PIT Tag Implanters
We supply an assortment of PIT tag implanters and needles to fit all tag sizes, types, and packaging options. These include single use pre-load needle-syringe combinations, single use pre-load needles with applicable implant guns, and reusable needles with reusable syringes.

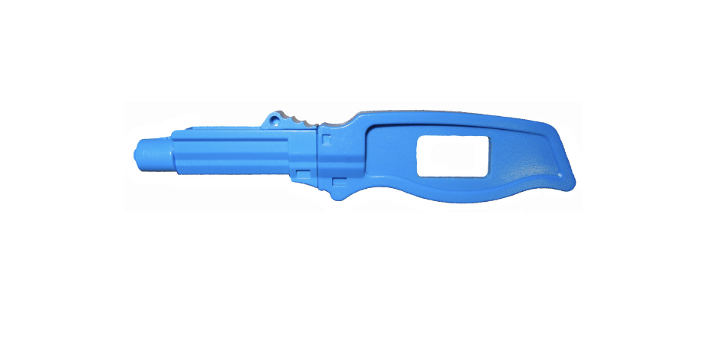

MK25/MK25 LL/MK65 Implanter Gun
MK25 for use with APT12, GPT12, HPT9, and HDX12. MK65 for use with MiniHPT8 and MiniHPT10. MK25LL available for APT12 Pre-Load Sterile.

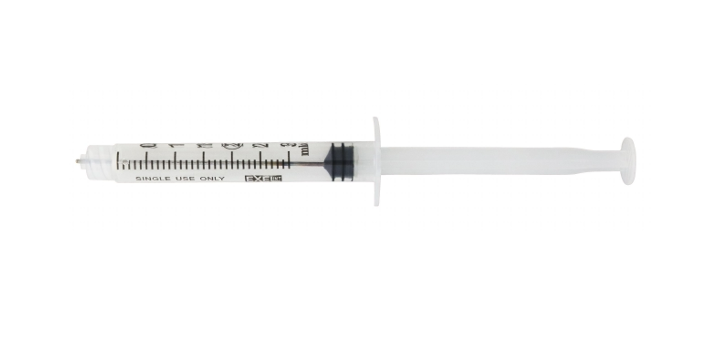

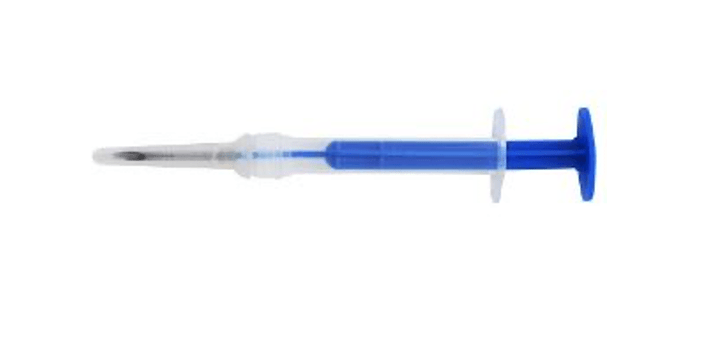

MK15 Implanter
For use with the GPT12 Pre-Load Sterile LL
MK10 Implanter
Syringe style. Corrosion resistant stainless-steel spring. Requires N125 needle for the APT12, HPT9, HDX12, or the N206 needle for HPT23, HDX23, and HDX32.
MK165 Implanter
Requires the N165 needle for the MiniHPT8 and MiniHPT10

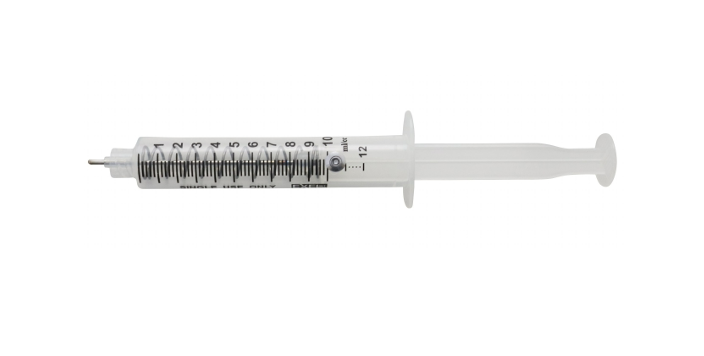

MK7 Implanter
Plastic syringe-style implanter with 1.25 inch 12-gauge non-replaceable needle. For use with the APT12, HPT9, and HDX12.

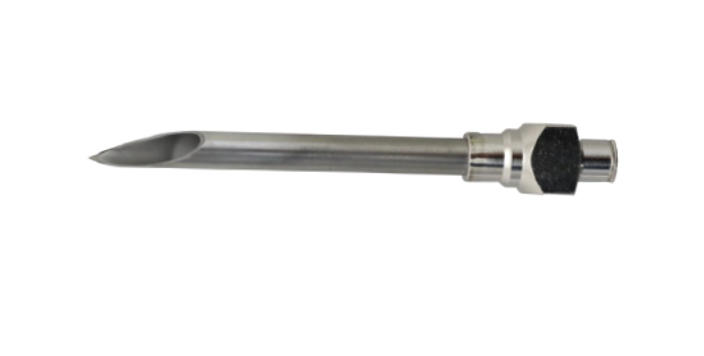

N206 Needle*
2 inches long, 6-gauge needle for use with the HPT23, HDX23, and HDX32.
*stainless-steel replacement needles are designed for use with MK10 and Mk165 implanters.

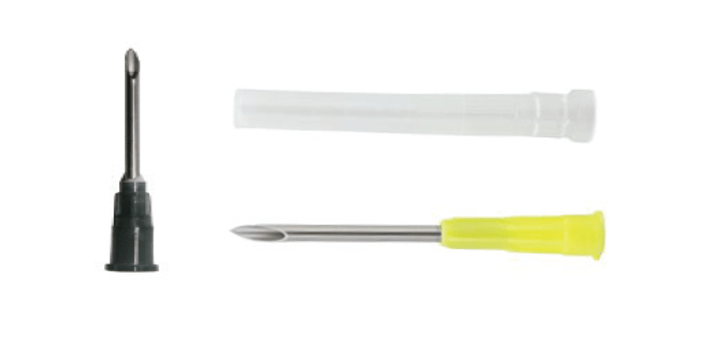

N125/N126 Needles
N125 is a 2 inch long, 12-gauge needle for use with APT12, HPT9, and HDX12. The N165 is 2 inch long, 16-gauge needle for use with MiniHPT8 and MiniHPT10.
PIT Tagging Accessories
Bluetooth devices that seamlessly support the data collection process. Scales are modified in-house to be used with Biomark software.

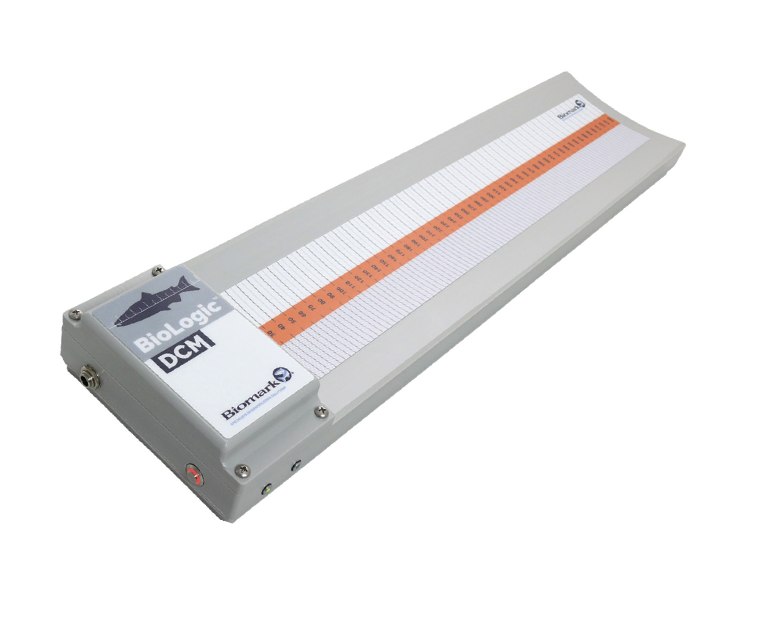

Electronic Measuring Board
100cm Measuring Board
50cm Measuring Board
The EMB was designed for absolute ingress protection and ruggedness. The measurement sensor uses a cordless magnetic stylus and connects via Bluetooth to our Data Collection Module (DCM).
Included:
- Padded soft carrying case
- AC charger 2 magnetic stylus pens

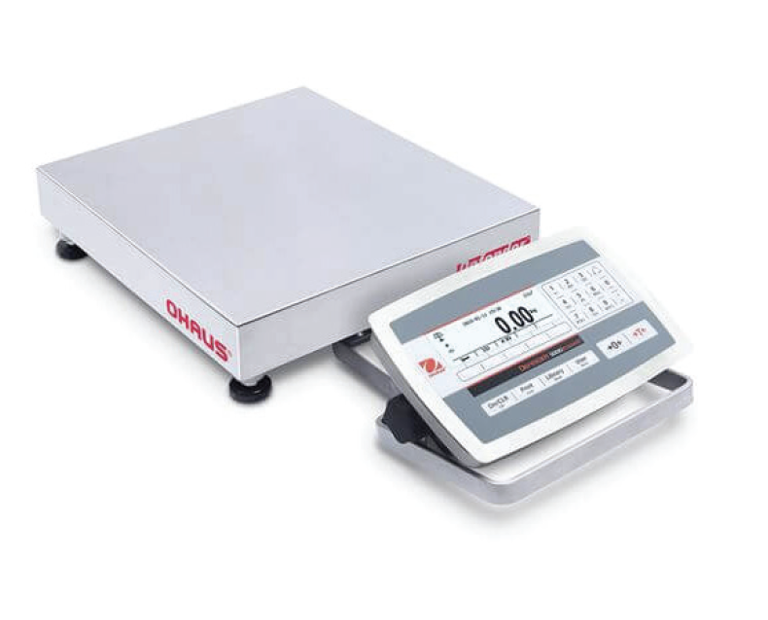

Ohaus Defender 5000
- Backlit liquid crystal display, 256 x 80 pixels
- Internal power supply with power cord included
- 304-grade stainless-steel platform and frame
- Non-slip adjustable rubber feet
- 25 lbs (12.5 kg) maximum capacity
- 20 hours battery life with rechargeable battery

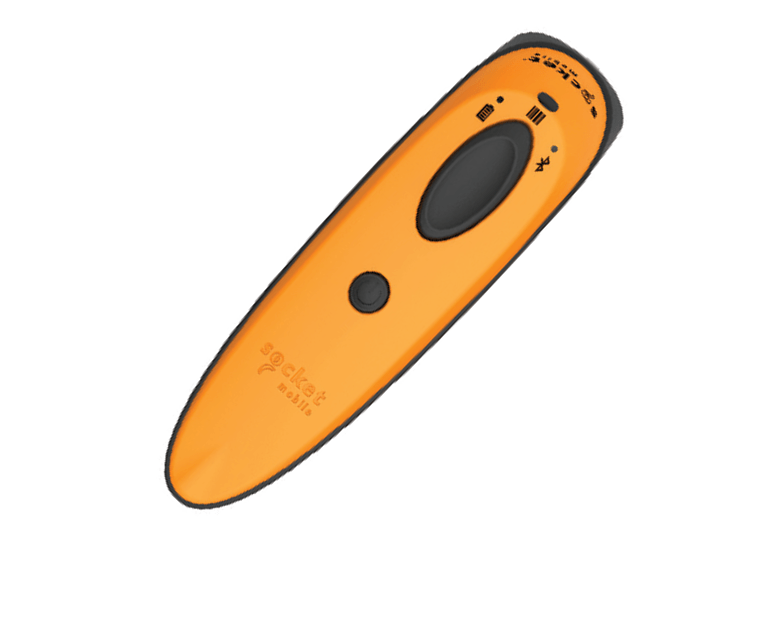

Socket Mobile Scanner
- Universal QR code reader scans 1D & 2D barcodes
- Communicates via Bluetooth
- Constructed of a highly durable, IP54 rated exterior to withstand dust and water splashes
- Antimicrobial material is easy to clean, helping protect from germs picked up with dirt in fisheries and wildlife settings
